4” Super Dominator 450

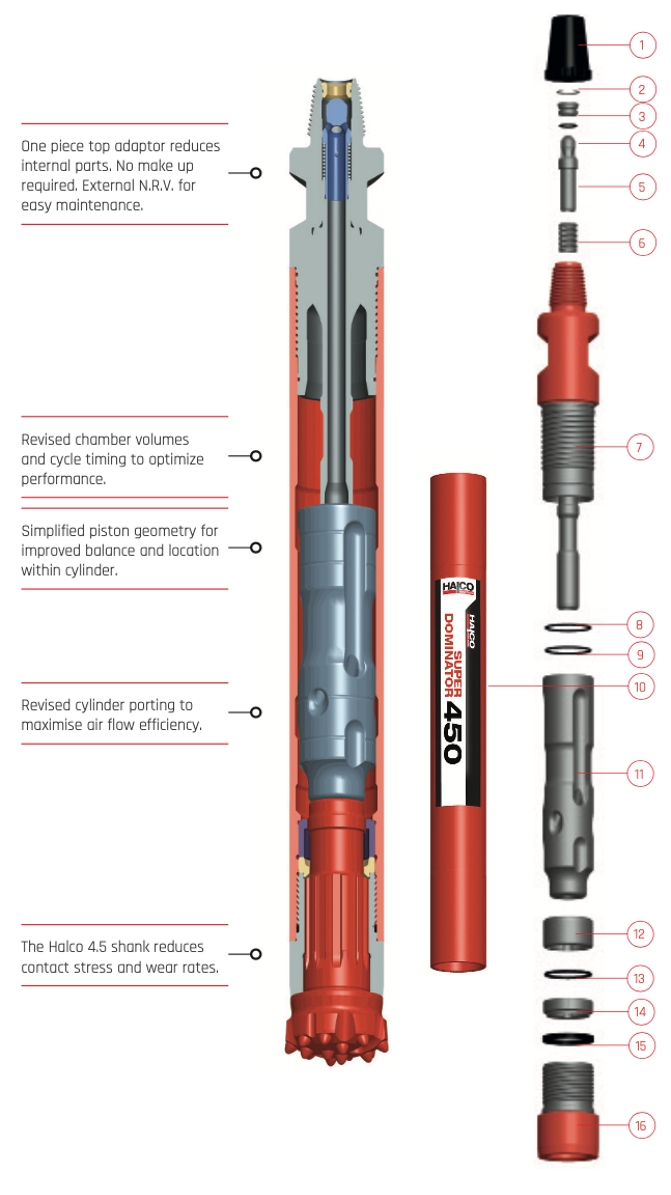

The Super Dominator 450 has been specifically designed for high production drilling in blast hole applications.
The hammer is robust and has few parts, making it user friendly and reliable. The Super Dominator 450 is fitted with a N.R.V
(Non Return Valve) in the top adaptor for a quick, easy inspection and maintenance operation. A fixed air distributor in the top adaptor means the 450 requires no shimming which simplifies servicing.
It also has no liner which increases the piston power output.
The Super Dominator 450 utilizes Halco’s 12 spline shank which has a simplistic robust geometry combined with increased drive contact area.
| At a Glance | |||
|---|---|---|---|
|
Size
|
Shank
|
Air pressure
|
Air flow
|
|
110mm - 140mm
4 5/16 - 5 1/2” |
Halco 4.5
|
100 - 507 psi
(7 - 35 bar) |
150 - 790 cfm
4248 - 22370 l/min |
| Hammer Overview | ||||
|---|---|---|---|---|
| Hammer Model | SDOM450 | |||
| Part Number | 600382 | |||
| Shank | Halco 4.5 | |||
| Thread Connection | 2 3/8" API Reg Pin Up | |||
| Minimum Bit Diameter | 110mm | |||
| Hammer Flat Size | 65mm (2.56") | |||
| Weight | 38.5 Kg (84.7 lbs) | |||
| Outside Diameter | 100.5mm (4.0") | |||
| Length (shoulder to shoulder) | 914mm (36.0") | |||
| Minimum Weight On Bit | 250 Kg (550 lbs) | |||
| Maximum Weight On Bit | 500 Kg (1100 lbs) | |||
| Parts List | Maintenance Kits | ||||
|---|---|---|---|---|---|
| Type | SDOM450 | Service Kit | Repair Kit | ||
| Shank | Halco 4.5 | ||||
| Item | Description | Part No. | SK59 | RK93 | |
| 1 | Thread Protector | 200111 | No | No | |
| 2 | Snap Ring | 783049 | Yes | Yes | |
| 3 | N.R.V Seat | 03919 | No | Yes | |
| 4 | O-Ring | 68187 | Yes | Yes | |
| 5 | Non Return Valve | 603918 | No | Yes | |
| 6 | N.R.V Spring | 760142 | Yes | Yes | |
| 7 | Top Adaptor | 603946 | No | No | |
| 8 & 9 | O-Ring (2) | 768190 | Yes | Yes | |
| 10 | Cylinder | 604387 | No | No | |
| 11 | Piston | 604392 | No | No | |
| 12 | Bit Guide Bush | 604314 | No | Yes | |
| 13 | O-Ring | 768189 | Yes | Yes | |
| 14 | Bit Retaining Ring | 603948 | No | Yes | |
| 15 | Chuck Lock Ring | 602733 | Yes | Yes | |
| 16 | Chuck | 603939 | No | Yes | |
| Foot Valve | 603951 | No | Yes | ||
