12” Mach 120
Mach 120 has a working pressure range of 170-350 psi (12-24bar) whilst its optimum performance is reached at air pressures of 200psi (14 Bar) and above.
Mach120 has no liner which increases the 140kg piston’s blow energy and reduces parts required.
| At a Glance | |||
|---|---|---|---|
|
Size
|
Shank
|
Air pressure
|
Air flow
|
|
300mm - 445mm
11 7/8" - 17 1/2" |
SD12
|
100 - 435 psi
(7 - 30 bar) |
700 - 3100 cfm
19822 - 87782 l/min |
| Hammer Overview | ||||
|---|---|---|---|---|
| Hammer Model | Mach 120 | |||
| Part Number | 600108 | |||
| Shank | SD12 | |||
| Thread Connection | 6 5/8" API Reg Pin | |||
| Minimum Bit Diameter | 300mm | |||
| Hammer Flat Size | C Ring type | |||
| Weight | 614 Kg (1,353 lbs) | |||
| Outside Diameter | 273mm (10.75") | |||
| Length (shoulder to shoulder) | 1667mm (65.6") | |||
| Minimum Weight On Bit | 1600 Kg (3520 lbs) | |||
| Maximum Weight On Bit | 3500 Kg (7700 lbs) | |||

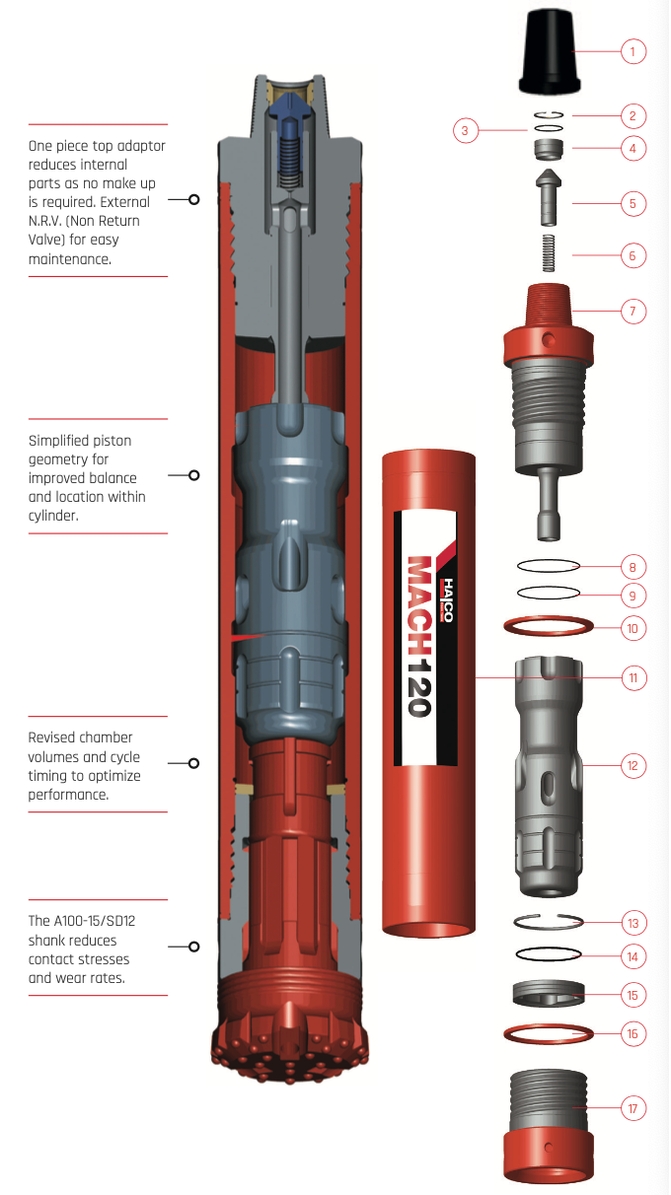

| Parts List | Maintenance Kits | ||||
|---|---|---|---|---|---|
| Type | Mach 120 | Service Kit | Repair Kit | ||
| Shank | SD12 | ||||
| Item | Description | Part No. | SK12 | RK19 | |
| 1 | Thread Protector | 200112 | No | No | |
| 2 | Circlip | 777001 | Yes | Yes | |
| 3 | O-Ring | 768133 | Yes | Yes | |
| 4 | N.R.V Seat | 602286 | No | Yes | |
| 5 | Non Return Valve | 602288 | No | Yes | |
| 6 | N.R.V Spring | 760055 | Yes | Yes | |
| 7 | Top Adaptor | 602639 | No | No | |
| 8 & 9 | O-Ring (2) | 768137 | Yes | Yes | |
| 10 | Spacer | 602366 | No | No | |
| 11 | Cylinder | 602013 | No | No | |
| 12 | Piston | 602047 | No | No | |
| 13 | Snap Ring | 783021 | Yes | Yes | |
| 14 | O-Ring | 768105 | Yes | Yes | |
| 15 | Bit Retaining Ring | 602102 | No | Yes | |
| 16 | Chuck Spacer | 602366 | Yes | Yes | |
| 17 | Chuck | 602052 | No | Yes | |
| Foot Valve | 601811 | No | Yes | ||
